Description

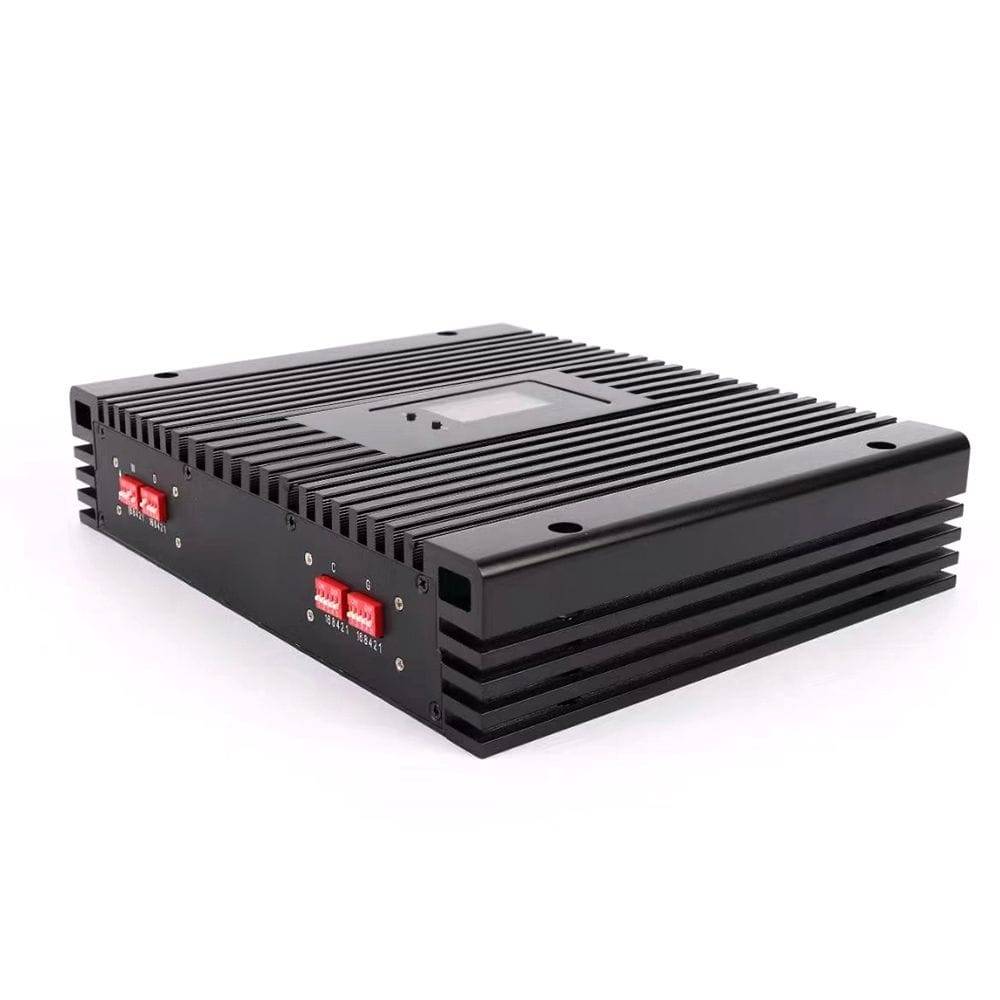

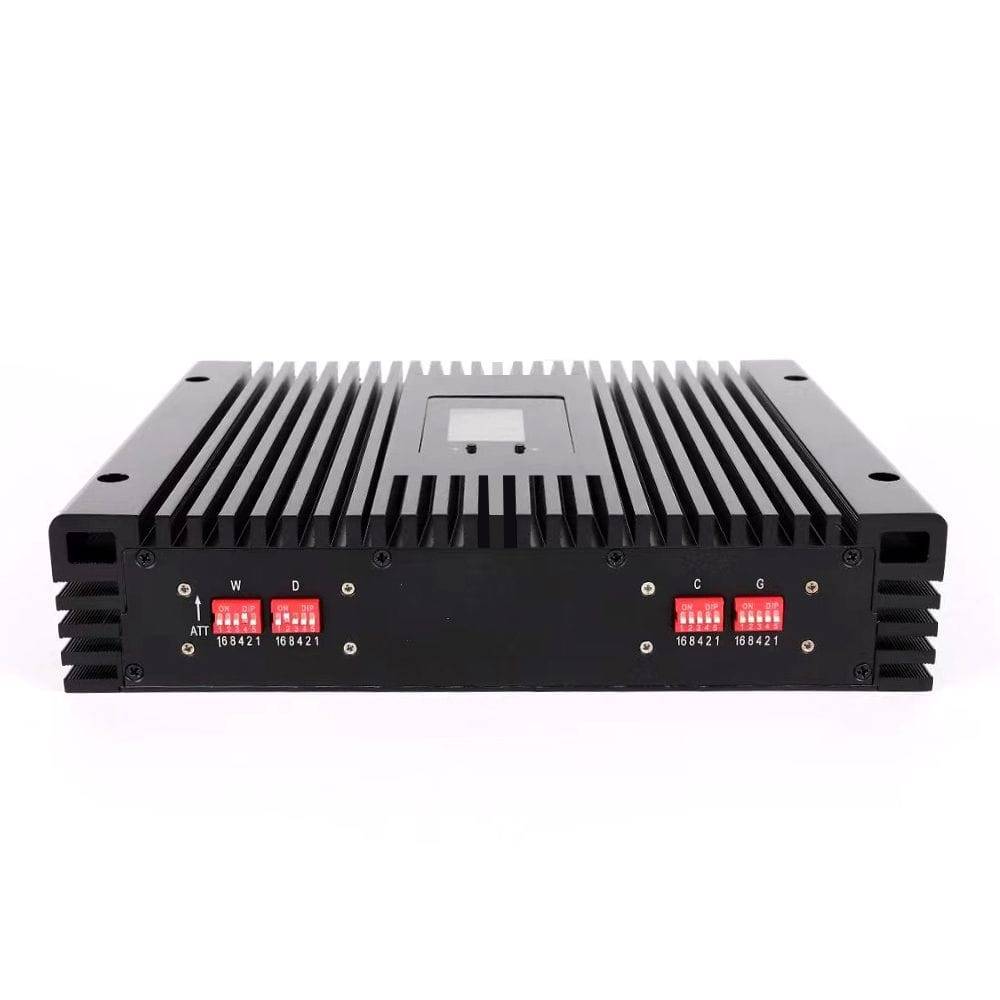

Mobile Signal Booster Cplay Mobile Signal Booster Commerical Booster function of this product is to improve the strength of the indoor mobile phone signal by receiving the outdoor mobile phone communication signal, transmitting it to the host engine and covering it through the indoor antenna. To achieve a stable and reliable communication experience for all indoor mobile phone users. This Mobile Network Booster Support all frequency 2g, 3g, 4g & 5g in India. it can be install easily at your home of office. This device design for all GSM Network. Mobile Signal Booster Commerical Frequency Range Uplink Downlink 850MHz 900MHz 1800MHz 2100MHz 2300MHz model - EJ0019-27 Max. Gain 75dB±1.5dB 80dB±1.5dB Max. Output Power 27dBm±1 Bandwidth Wide Band Manual Gain Control 31dB,1dBstep ALC >25dB Ripple in Band ≤8dB Noise Figure ≤6dB VSWR ≤2.0 RF Connector N-Female Time Delay ≤1.5μs Frequency stability ≤0.01ppm MTBF >50000hours Impedance 50ohm Power Supply AC90-264Vor100-240V,DC10Vor12V,50/60Hz Humidity <90% OperatingTemperature-10°C~+55°C Environment Conditions IP40 Installation Type Wall Installation Size 439*268*58mm BTS interface for receiving antenna Area Cover upto 10000 sq ft.
